A coil has resistance of 30 ohm and inductive reactance 20 ohm at 50 Hz frequency. If an ac source of 200 V, 100 Hz is connected across the coil, current in coil will be

Option 1 -

2 A

Option 2 -

4 A

Option 3 -

5 A

Option 4 -

6 A

0 Views | Posted 4 hours ago

Asked by Shiksha User

1 Answer

Answered by

alok kumar singh | Contributor-Level 10

4 hours ago

Correct Option - 2

Detailed Solution:

0 Upvotes 0 Downvotes

Similar Questions for you

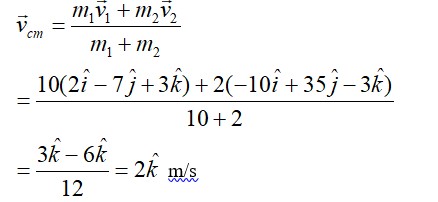

Two bodies of mass 10 kg and 2 kg are moving with velocities m/s and m/s respectively. The velocity of their centre of mass is

alok kumar singh

A capacitor having capacitance of 100 µF is charged with a potential difference of 12 V is connected to an inductor of inductance 10 mH. Find the maximum current through the inductor.

alok kumar singh

$I = Q_{0 . ω}$

$= \frac{C V}{\sqrt[]{L C}} = V \sqrt[]{\frac{C}{L}}$

$= 12 \sqrt[]{\frac{100 \times 1 0^{- 6}}{10 \times 1 0^{- 3}}}$

= 1.2 A

In AC circuit with source voltage e = 20 sin 1000 t is connected to series L – R circuit whose power factor is $\frac{1}{\sqrt[]{2}}$ . If E = 25 sin 2000 t, the new power factor is

alok kumar singh

Lω = 1000 L Lω = R.

New

R = 1000 L

2000 L

$c o s θ = \frac{R}{Z}$

$= \frac{1000 L}{\sqrt[]{{(1000 L)}^{2} + {(2000 ? L)}^{2}}}$

$= \frac{1}{\sqrt[]{1 + 4}} = \frac{1}{\sqrt[]{5}}$

Find average power in electric circuit if source voltage (V) = 20sin(100wt) and current in the circuit (I) = 2sin(100wt + $\frac{π}{3}$ )

alok kumar singh

= IV cosf

$= \frac{20}{\sqrt[]{2}} * \frac{2}{\sqrt[]{2}} *$ cos 60°

= 10 W

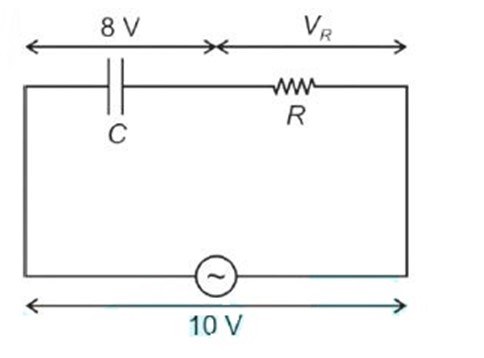

In a series $C - R$ circuit shown in figure, the applied voltage is $10 V$ and the voltage across $R$ the capacitor is found to be . The voltage across and the phase difference between current and the applied voltage will be respectively.
