For a series LCR circuit, I vs curve is shown:

Choose the most appropriate answer from the options given below:

Option 1 - <p>To the left of  <span class="mathml" contenteditable="false"> <math> <mrow> <mi>ω</mi> </mrow> </math> </span>the circuit is mainly capacitive.</p>

Option 2 - <p>To the left of <span class="mathml" contenteditable="false"> <math> <mrow> <mi>ω</mi> </mrow> </math> </span> the circuit is mainly inductive.</p>

Option 3 - <p>At <span class="mathml" contenteditable="false"> <math> <mrow> <mi>ω</mi> </mrow> </math> </span> impedance of the circuit is equal to the resistance of the circuit.</p>

Option 4 - <p>At <span class="mathml" contenteditable="false"> <math> <mrow> <mi>ω</mi> </mrow> </math> </span>, impedance of the circuit is 0.</p>

3 Views|Posted 6 months ago

Asked by Shiksha User

1 Answer

Sort by:

A

Answered by

Alok Kumar Singh | Contributor-Level 10

6 months ago

Correct Option - 3

Detailed Solution:

At w_r impedance of the circuit is equal to the resistance of the circuit.

Left of w_r, circuit is mainly capacitive

Right of w_r, the circuit is mainly Inductive.

Upvote

Thumbs Down Icon

Similar Questions for you

Power factor of series LCR circuit at resonance is

At resonance V_L = V_C

_{$\Rightarrow c o s ? = \frac{V_{R}}{\sqrt[]{V_{R}^{2} + {(V_{L} - V_{C})}^{2}}} = 1$}

An electric bulb and a capacitor are connected in series with an AC source. On increasing the frequency of the source, the brightness of the bulb:

$X_{C} = \frac{1}{ω C}$

On increasing $ω$ XC decreases so Z decreases, current in circuit increases.

A direct current of 4 A and an alternating current of 4 A flows through two identical resistors. The ratio of heat produced in the two resistances in same time interval will be

$\frac{H_{D . C .}}{H_{A . C .}} = \frac{I^{2} R}{I_{r m s}^{2} R} = 1$

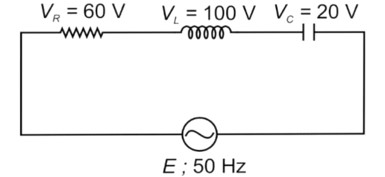

The value of alternating emf (E) in the given circuit will be

$E = \sqrt[]{V_{R}^{2} + {(V_{L} - V_{C})}^{2}}$

$E = \sqrt[]{{(60)}^{2} + {(100 - 20)}^{2}}$

E = 100V

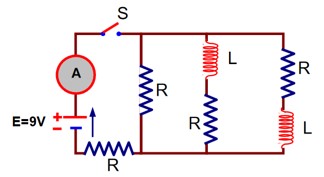

Figure shows a circuit that contains four identical resistors with resistance R = $2.0 Ω,$ two identical inductors with inductance L = 2.0mH and an ideal battery with emf E = 9V. The current ‘i’ just after switch ‘S’ is closed will be:

R = $2 Ω$

L = 2 mH

E = 9V

$i = \frac{ε}{2 R} = \frac{9 v}{4 Ω} = 2.25 A$

Just after the switch ‘S’ is closed, the inductor acts as open circuit.
