Magnetic fields at two points on the axis of a circular coil at a distance of 0.05m 0.2m from the centre are in the ratio 8 : 1. The radius of coil is-------------.

Option 1 -

0.15m

Option 2 -

1.0m

Option 3 -

0.1m

Option 4 -

0.2m

2 Views | Posted 2 months ago

Asked by Shiksha User

1 Answer

Answered by

Vishal Baghel | Contributor-Level 10

2 months ago

Correct Option - 3

Detailed Solution:

Magnetic field on the axis of a circular coil at distance x from centre, B = $\frac{μ_{0} N i r^{2}}{2 {(r^{2} + x^{2})}^{\frac{3}{2}}}$ $\frac{_{}^{}}{{^{}^{}}^{\frac{}{}}}$

$\frac{{(r^{2} + {(0.2)}^{2})}^{\frac{3}{2}}}{{(r^{2} + {(0.05)}^{2})}^{\frac{3}{2}}} = 8$ $\frac{r^{2} + {(0.2)}^{2}}{r^{2} + {(0.05)}^{2}} = 4 \Rightarrow r^{2} = 0.01 \Rightarrow r = 0.1 m .$

Magnetic field on the axis of a circular coil at distance x from centre, B = <math> <mrow> <mfrac> <mrow> <msub> <mrow> <mi>μ</mi> </mrow> <mrow> <mn>0</mn> </mrow> </msub> <mi>N</mi> <mi>i</mi> <msup> <mrow> <mi>r</mi> </mrow> <mrow> <mn>2</mn> </mrow> </msup> </mrow> <mrow> <mn>2</mn> <msup> <mrow> <mrow> <mo> (</mo> <mrow> <msup> <mrow> <mi>r</mi> </mrow> <mrow> <mn>2</mn> </mrow> </msup> <mo>+</mo> <msup> <mrow> <mi>x</mi> </mrow> <mrow> <mn>2</mn> </mrow> </msup> </mrow> <mo>)</mo> </mrow> </mrow> <mrow> <mfrac bevelled="true"> <mrow> <mn>3</mn> </mrow> <mrow> <mn>2</mn> </mrow> </mfrac> </mrow> </msup> </mrow> </mfrac> </mrow> </math> <math><mrow><mfrac><mrow><msub><mrow></mrow><mrow></mrow></msub><msup><mrow></mrow><mrow></mrow></msup></mrow><mrow><msup><mrow><mrow><mrow><msup><mrow></mrow><mrow></mrow></msup><msup><mrow></mrow><mrow></mrow></msup></mrow></mrow></mrow><mrow><mfrac bevelled="true"><mrow></mrow><mrow></mrow></mfrac></mrow></msup></mrow></mfrac></mrow></math> <math> <mrow> <mfrac> <mrow> <msup> <mrow> <mrow> <mo> (</mo> <mrow> <msup> <mrow> <mi>r</mi> </mrow> <mrow> <mn>2</mn> </mrow> </msup> <mo>+</mo> <msup> <mrow> <mrow> <mo> (</mo> <mrow> <mn>0</mn> <mo>.</mo> <mn>2</mn> </mrow> <mo>)</mo> </mrow> </mrow> <mrow> <mn>2</mn> </mrow> </msup> </mrow> <mo>)</mo> </mrow> </mrow> <mrow> <mfrac bevelled="true"> <mrow> <mn>3</mn> </mrow> <mrow> <mn>2</mn> </mrow> </mfrac> </mrow> </msup> </mrow> <mrow> <msup> <mrow> <mrow> <mo> (</mo> <mrow> <msup> <mrow> <mi>r</mi> </mrow> <mrow> <mn>2</mn> </mrow> </msup> <mo>+</mo> <msup> <mrow> <mrow> <mo> (</mo> <mrow> <mn>0</mn> <mo>.</mo> <mn>0</mn> <mn>5</mn> </mrow> <mo>)</mo> </mrow> </mrow> <mrow> <mn>2</mn> </mrow> </msup> </mrow> <mo>)</mo> </mrow> </mrow> <mrow> <mfrac bevelled="true"> <mrow> <mn>3</mn> </mrow> <mrow> <mn>2</mn> </mrow> </mfrac> </mrow> </msup> </mrow> </mfrac> <mo>=</mo> <mn>8</mn> </mrow> </math> <math> <mrow> <mfrac> <mrow> <msup> <mrow> <mi>r</mi> </mrow> <mrow> <mn>2</mn> </mrow> </msup> <mo>+</mo> <msup> <mrow> <mrow> <mo> (</mo> <mrow> <mn>0</mn> <mo>.</mo> <mn>2</mn> </mrow> <mo>)</mo> </mrow> </mrow> <mrow> <mn>2</mn> </mrow> </msup> </mrow> <mrow> <msup> <mrow> <mi>r</mi> </mrow> <mrow> <mn>2</mn> </mrow> </msup> <mo>+</mo> <msup> <mrow> <mrow> <mo> (</mo> <mrow> <mn>0</mn> <mo>.</mo> <mn>0</mn> <mn>5</mn> </mrow> <mo>)</mo> </mrow> </mrow> <mrow> <mn>2</mn> </mrow> </msup> </mrow> </mfrac> <mo>=</mo> <mn>4</mn> <mo>⇒</mo> <msup> <mrow> <mi>r</mi> </mrow> <mrow> <mn>2</mn> </mrow> </msup> <mo>=</mo> <mn>0</mn> <mo>.</mo> <mn>0</mn> <mn>1</mn> <mo>⇒</mo> <mi>r</mi> <mo>=</mo> <mn>0</mn> <mo>.</mo> <mn>1</mn> <mi>m</mi> <mo>.</mo> </mrow> </math>

0 Upvotes 0 Downvotes

Similar Questions for you

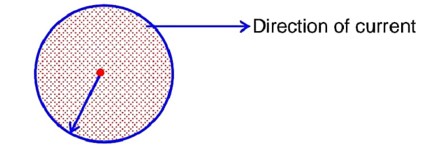

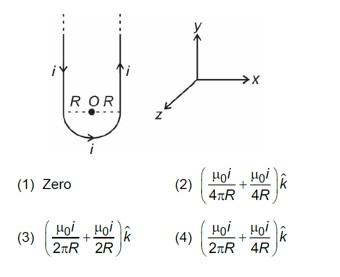

The magnetic induction at the centre O in the figure shown is:

alok kumar singh

Two long current carrying conductors are placed parallel to each other at a distance of 8 cm between them. The magnitude of magnetic field produced at mid-point between the two conductors due to current flowing in them is 300 $μ T$ . the equal current flowing in the two conductors is:

alok kumar singh

If currents are flowing in same direction, magnetic field will cancel each other, so the currents must flowing in opposite direction

$B_{P} = \frac{μ_{0} I}{2 π r} \times 2$

$\Rightarrow 300 \times 1 0^{- 6} = \frac{4 π \times 1 0^{- 7}}{2 π \times 4 \times 1 0^{- 2}} \times 2$

$\Rightarrow$ I = 30 A

Charge q is uniformly spread on a thin ring of radius R. The ring rotates about its axis with a uniform frequency f Hz. The magnitude of magnetic induction at the centre of the ring is

Raj Pandey

When the ring rotates about its axis with a uniform frequency fHz, the current flowing in the ring is

I=q/T=qf

Magnetic field at the centre of the ring is

AB µ r² long straight wire with a circular cross-section having radius R, is carrying a steady current I: The current I is uniformly distributed across this cross-section. Then the variation of magnetic field due to current I with distance r(r < R) from its centre will be:

Raj Pandey

for $π R^{2} A r e a \to' l'$ current\

1 unit Area ® $\frac{l}{π R^{2}}$

$π r^{2} \to \frac{l}{π R^{2}} \times π r^{2}$

$i = \frac{l r^{2}}{R^{2}}$

Now, consider Amperian loop of radius small ‘r’ ln Amperian loop magnetic field will be tangential to the amperian loop.

$? \vec{B} . d \vec{i} = μ_{0} l_{e n c l o s e d}$ (Ampere circuital law)

$B = \frac{μ_{0}}{2 π} \frac{l}{R^{2}} r$

$B \propto r$

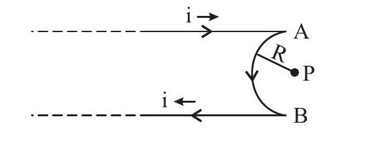

A very long conducting wire is bent in a semi-circular shape from A to B as shown in figure. The magnetic field at point P for steady current configuration is given by:

Raj Pandey

${\overset{?}{B}}_{P} = {\overset{?}{B}}_{upper wire} \otimes + {\overset{?}{B}}_{semi-circle} ? + {\overset{?}{B}}_{lower-wire} \otimes$

$B_{P} = - \frac{μ_{0} i}{4 π R} + \frac{μ_{0} i}{4 R} - \frac{μ_{0} i}{4 π R} = \frac{μ_{0} i}{4 R} (1 - \frac{2}{π})$ pointing away from the page
