What is the weightage of Electric Charges and Fields in CBSE Board exam?

2 Views|Posted 4 months ago

Asked by Shiksha User

1 Answer

Sort by:

Answered by

Pallavi Pathak | Contributor-Level 10

4 months ago

Class 12 physics chapter 1 Electric Charges and Fields is an important chapter for the CBSE Board exam. In unit 1 of the CBSE Board exam of class 12 Physics, there are questions from three chapters including - Electric Charges and Fields, Electrostatics, and Electrostatic Potential and Capacitance.

Upvote

Similar Questions for you

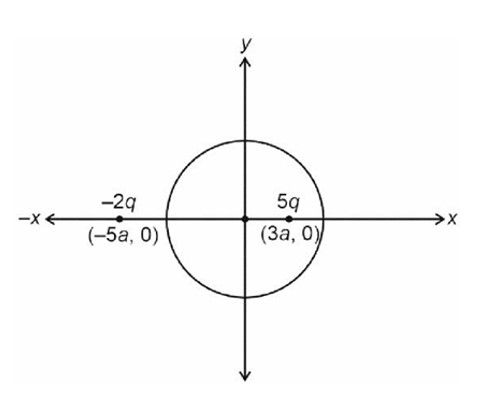

A solid sphere of radius 4a with centre at origin. Two charge, –2q at (–5a, 0) and 5q at (3a, 0) is placed. Flux through sphere is $\frac{x q}{ε_{0}}$ . Find x

Alok Kumar Singh

From Gauss law

$? = \frac{q_{e n c l o s e d}}{ε_{0}} = \frac{5 q}{ε_{0}}$

Alok Kumar Singh

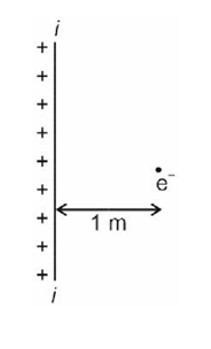

For maximum value of s, initially, electron must move away from plate.

ut + $\frac{1}{2}$ at² = s

t = 1u = 1m/s s = –1 m

1 × 1 – $\frac{1}{2}$ a × 1² = – 1

-> a = 4m/s²

$\frac{q E}{m} = 4$

$\frac{q σ}{2 ε_{0} m} = 4$

$σ = \frac{4 \times 2 \times 9 \times 1 0^{- 12} \times 9 \times 1 0^{- 31}}{1.6 \times 1 0^{- 19}}$

$= \frac{8 \times 81}{1.6} \times 1 0^{- 24}$

Vishal Baghel

$?_{1} = \frac{3}{5} E_{0} (0.2) N m^{2} C^{- 1}, a n d ?_{2} = \frac{4}{5} E_{0} (0.3) N m^{2} C^{- 1}$

$\Rightarrow \frac{?_{1}}{?_{2}} = \frac{3 \times 0.2 \times 5}{5 \times 0.3 \times 4} = \frac{1}{2}$

Two point charge Q each are placed at a distance d apart. A third point charge q is placed at a distance x from mid-point on the perpendicular bisector. The value of x at which charge q will experience the maximum Coulomb’s force is:

Vishal Baghel

According to question, we can write

$F_{C A} = F_{C B} = \frac{K q Q}{x^{2} + {(\frac{d}{2})}^{2}} \Rightarrow F = 2 F_{C A} c o s θ = \frac{2 K q Q x}{{[x^{2} + {(\frac{d}{2})}^{2}]}^{\frac{3}{2}}}$

For maxima of force $\frac{d F}{d x} = 0, s o$

$x = \frac{d}{2 \sqrt[]{2}}$

A charge q of mass m enters a region of electric field E = -E₀ĵ with a velocity v₀î + v₀ĵ at origin. Find the x coordinate where the charge hits the x axis again. (Neglect effect of gravity)

Vishal Baghel

In y axis u? = v? a? = -E? q / m
s? = 0, u? t + (1/2)a? t² = 0 ⇒ t = 2u? /a? = 2v? m/E? q
x coordinate at that time = v? × t = (2v? m/0) × v? = (2v? ²m)/E? q
