14.2 Which of the statements given in Exercise 14.1 is true for p-type semiconductor.

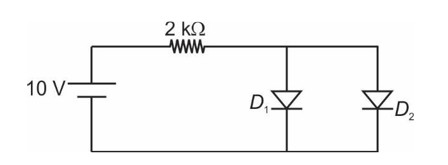

The current flow through the resistance in the given circuit is : (Cut-off voltage for both diodes is 0.7 V)

A n-p-n transistor can be used as

The output (X) of the logic circuit shown in figure will be

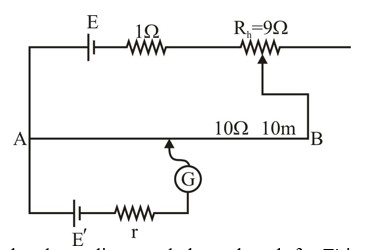

In the above diagram, balance length for E' is ℓ₀. If cross sectional area of wire AB is doubled then what will be new balancing length ?

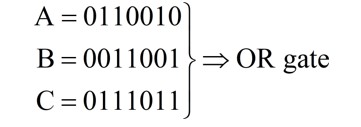

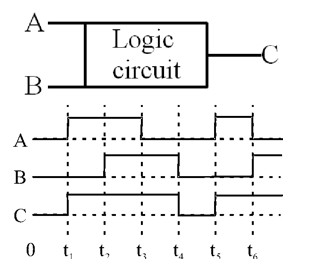

The figure shows a logic circuit with two inputs A and B and an output C. The voltage wave forms of A, B and C are as given, then logic circuit will be equivalent to :-
